1968 (?) 15' Richline V-Bottom

Post by JGibson » 25 Aug 2016, 17:50

I bought this boat, motor & trailer for $600 last week. Motor started on first crank. My plan is to add a couple of decks and a floor as time/work allows. I can't seem to find anything on the motor other than a Manual serial number to find out exactly what year it is so maybe someone here can help?

The Boat:

Motor:

Before Teardown:

After:

I've been looking around for some ideas and found a few here. I plan to strip all the paint from this boat, seal every seam and rivet, repaint before I ever put it in the water. Prob will do the same to the motor, replace the vitals (Impeller, Plugs, etc.) repaint it. Gonna take me a minute but it should be fun. Input welcomed, links to info, other v bottom builds, anything that will help or give me ideas. Thanks.
Last edited by JGibson on 26 Aug 2016, 18:23, edited 1 time in total.
1979 Monark 1443, 1969 Johnson 18Hp Motor

Xtremeboats
User avatar
JGibson
Posts: 237
Joined: 13 Jul 2012, 17:46
Location: East TN

1968 (?) 15' Richline V-Bottom

Post by JGibson » 26 Aug 2016, 17:58

Trailer:


Stripping Paint has started:


Whatever this stuff is, it's very unforgiving...kinda looks like roofing tar...?

1979 Monark 1443, 1969 Johnson 18Hp Motor

User avatar
JGibson
Posts: 237
Joined: 13 Jul 2012, 17:46
Location: East TN

1968 (?) 15' Richline V-Bottom

Post by JGibson » 28 Aug 2016, 18:25

I have decided that this IS roofing tar. Smells like it, feels like it...

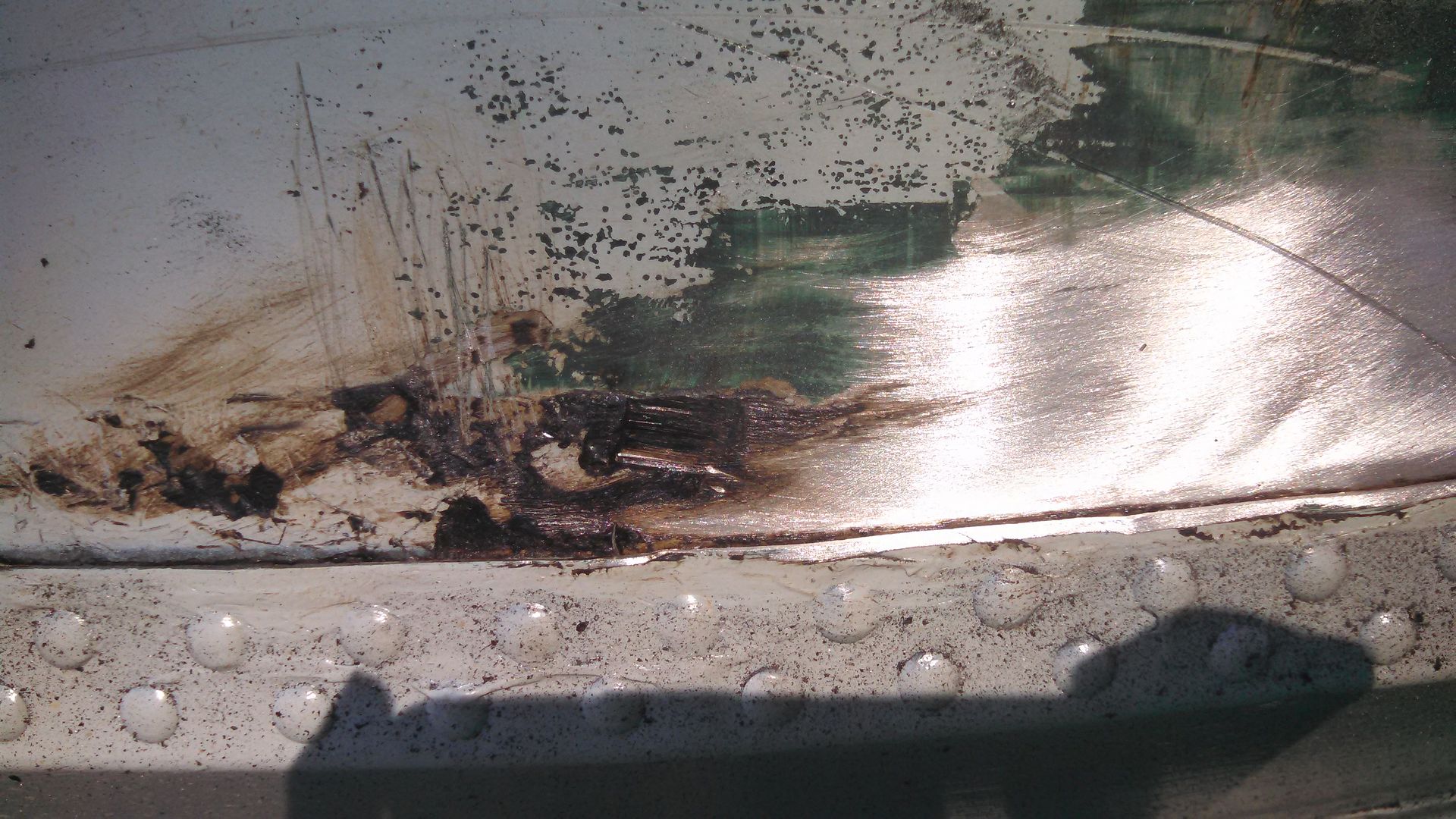

Made some more progress today, I'm having to scrape the real thick parts away then using a soft wire brush on my drill I can remove the rest of it:

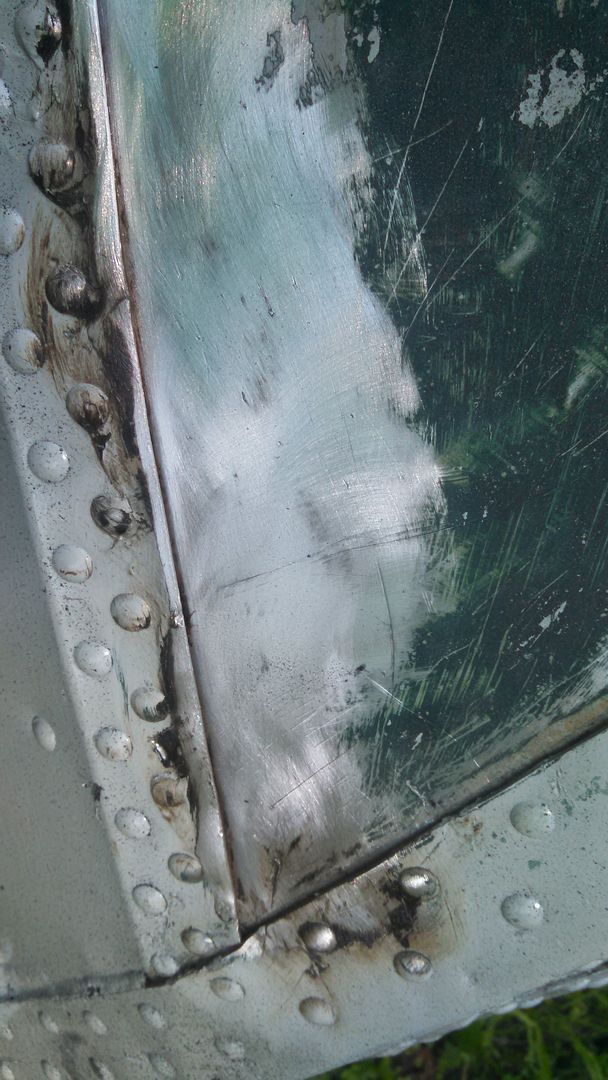

My plan here is to either use an Aluminum brazing rod to fill in this seam or maybe use some JB Weld to fill it in before I paint it.
1979 Monark 1443, 1969 Johnson 18Hp Motor

User avatar
mrdrh99
Posts: 382
Joined: 20 Sep 2014, 21:26
Location: Omaha, NE

1968 (?) 15' Richline V-Bottom

Post by mrdrh99 » 28 Aug 2016, 20:33

Nice looking boat! I'd personally use brazing rods because the jb weld is such a mess
Eat, drink, and be merry, for tomorrow we die

User avatar
JGibson
Posts: 237
Joined: 13 Jul 2012, 17:46
Location: East TN

1968 (?) 15' Richline V-Bottom

Post by JGibson » 30 Aug 2016, 18:58

Thanks. I will probably end up using the rods, that way (Hopefully) it will be permanent. Taking my time with this (As time allows) so I can actually get it done the way I want.
1979 Monark 1443, 1969 Johnson 18Hp Motor

lckstckn2smknbrls
Posts: 4268
Joined: 05 Oct 2008, 12:14
Location: Algonquin Il

1968 (?) 15' Richline V-Bottom

Post by lckstckn2smknbrls » 30 Aug 2016, 20:01

Don't use heat along the seam. There is usually a sealer that will burn out and cause more leaks.
1971 14' Ward's Sea King Jon Boat / 1983 Mariner 25HP

User avatar
JGibson
Posts: 237
Joined: 13 Jul 2012, 17:46
Location: East TN

1968 (?) 15' Richline V-Bottom

Post by JGibson » 19 Sep 2016, 21:58

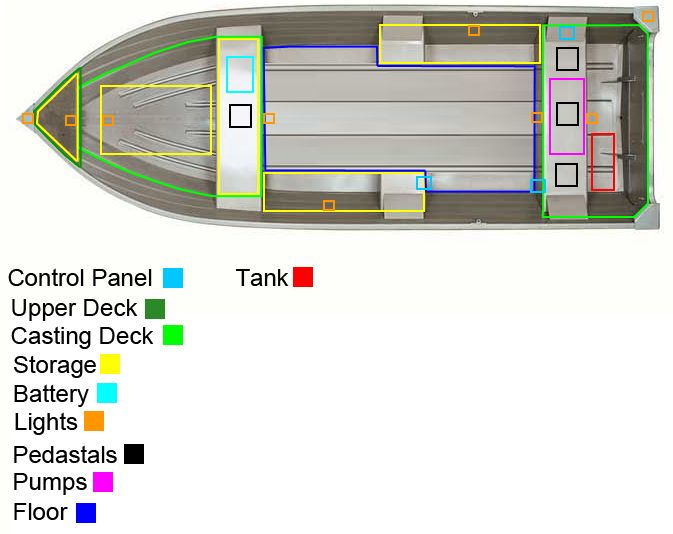

My plan for the boat (I stole ideas from others here, hope you don't mind):


What you don't see is flotation. There will be flotation under the floor, in and around all storage and in both benches. This plan may change as I go along with the build. The storage areas you see on the sides, I may run them from front to back.
1979 Monark 1443, 1969 Johnson 18Hp Motor

User avatar
RStewart
Posts: 694
Joined: 17 Mar 2008, 08:31
Location: norman,ok

1968 (?) 15' Richline V-Bottom

Post by RStewart » 20 Sep 2016, 12:20

Nice boat. I've got a 14 ft one just like it. Not sure what the black stuff is but mine had it also. Must be some type of sealant the factory used.

Looks like you've got a good plan. Keep us informed.
14ft Richline semi v

Sinner by birth...Saved by the Grace of GOD!!!

sonny.barile
Posts: 201
Joined: 20 Apr 2015, 21:06
Location: Secaucus, New Jersey

1968 (?) 15' Richline V-Bottom

Post by sonny.barile » 20 Sep 2016, 18:24

Why not just go along those edges with 5200 or some flexible marine sealant? Run a bead right along that edge like the corners of a bathtub. It will flex with the boat and can be replaced easily if needed. Less mess.....

User avatar
JGibson
Posts: 237
Joined: 13 Jul 2012, 17:46
Location: East TN

1968 (?) 15' Richline V-Bottom

Post by JGibson » 22 Sep 2016, 04:02

RStewart, I have your build bookmarked.

sonny.barile, I plan to use something on the inside of the boat like that to fill in the seam and cover the rivets. I was trying to use something on the outside more Durable I guess you could say, I figured the inside would see less friction because of water or debris than the outside.
1979 Monark 1443, 1969 Johnson 18Hp Motor

sonny.barile
Posts: 201
Joined: 20 Apr 2015, 21:06
Location: Secaucus, New Jersey

1968 (?) 15' Richline V-Bottom

Post by sonny.barile » 22 Sep 2016, 17:48

Oh I thought I was looking at an inside seam. LOL Im getting old.....

Crazyboat
Posts: 366
Joined: 17 Aug 2016, 20:52
Location: NJ

1968 (?) 15' Richline V-Bottom

Post by Crazyboat » 22 Sep 2016, 17:54

Maybe I missed it but, what size engine is that, looks like a 6 or 8 HP but not sure.

User avatar
JGibson
Posts: 237
Joined: 13 Jul 2012, 17:46
Location: East TN

1968 (?) 15' Richline V-Bottom

Post by JGibson » 24 Sep 2016, 09:29

sonny.barile: All good, those are on the outside :wink:

Crazyboat: The motor is a 25HP
1979 Monark 1443, 1969 Johnson 18Hp Motor

water bouy
Posts: 678
Joined: 29 Jun 2016, 19:36
Location: middle of NC

1968 (?) 15' Richline V-Bottom

Post by water bouy » 24 Sep 2016, 16:33

Nice catch. How will you compensate for the structure of the middle bench? I'm thinking of making an aisle in mine.
16 ft Sea Nymph w/30 Johnson
14 ft Monark w/25 Merc XD sold
1994 Lowe 1605 w/50 Evinrude sold
14 ft Lone Star w/15hp Evinrude sold

User avatar
JGibson
Posts: 237
Joined: 13 Jul 2012, 17:46
Location: East TN

1968 (?) 15' Richline V-Bottom

Post by JGibson » 24 Sep 2016, 22:25

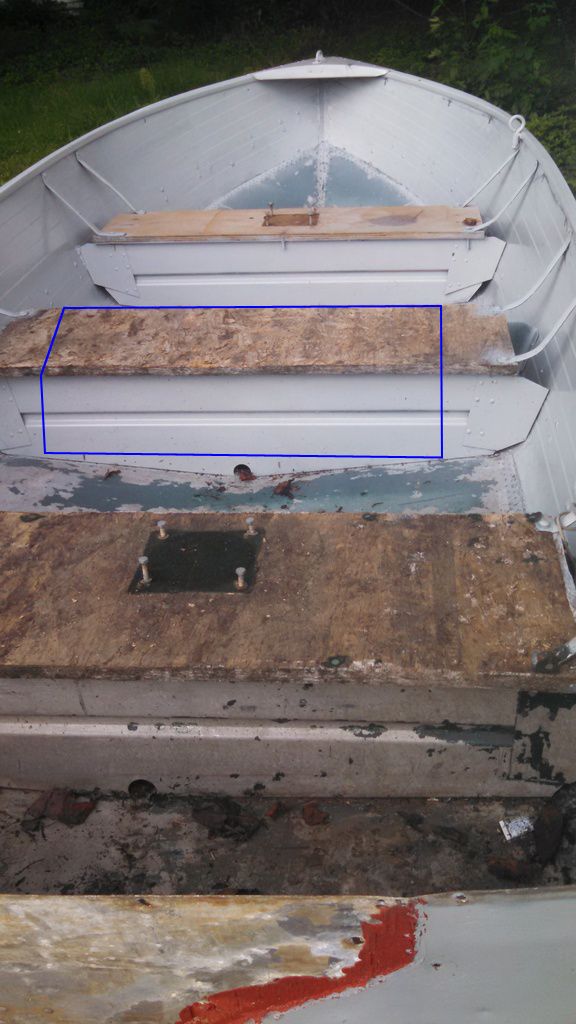

I'm planning on cutting the middle bench down each side and across the top of the drain hole.


Hopefully this will help to keep the some of the side strength plus add some bracing for the floor.
