wiring 1973 chrysler ignition

Post by gouran01 » 13 May 2011, 19:41

hey all, im dumbfounded, trying to wire my dang chrysler ignition up, had the purple acc and black not hooked to the key switch when I got it (was running fine for some reason) now trying to hook it back up with the same wiring and can't get right. this is what I have.

On the motor and labeled as such:

Blue-ignition
White-Tach
Red-Battery+
Green-Choke
Yellow-Start
Purple-Generator
Orange-Heat (have no clue!)
Black-Ground

I have 2 switches I have tried

1st the one it came with has the following

S- (yellow?)
C- (choke)
B- (red batt)
M-?
I- (ignition or start?)
M-?

2nd switch

M?
A-(purple accesory?)
I-( blue Ignition or yellow start?
raised M (batt black neg?)
B-(red batt)
C-(choke)

Help would be great! the difference in all the different lil letters in switched and coloring has me stupified and google finally failed to let me down!

Xtremeboats
User avatar
gouran01
Posts: 355
Joined: 06 Nov 2010, 09:02
Location: Frankenmuth, MI/Browning,IL

wiring 1973 chrysler ignition

Post by gouran01 » 13 May 2011, 20:38

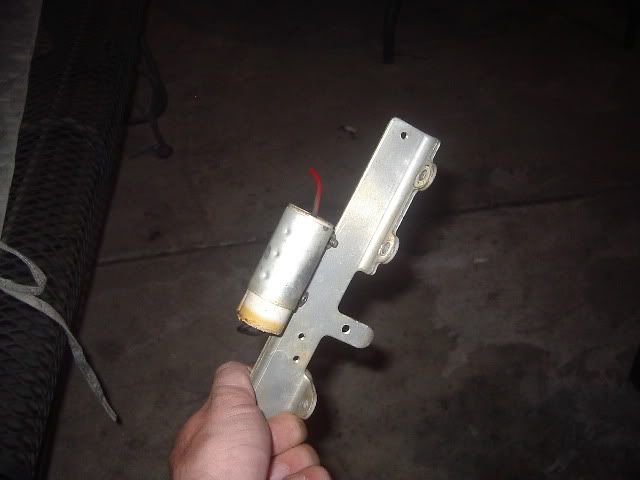

and what in dear baby jebus' name is this? found it when I was havin wiff verify my color blindness. the red wire was just snipped off sittin free. I assume because it was there, there is a purpose, but?????
