Trailer rebuild question

Post by BtsNhoS »

So im rebuilding my POS trailer and had some quick questions on the rebuild. I took everything apart and sanded each piece down and added primer to it, im then using rhino liner to paint it. I have all the pictures that ill post up here eventually but what are the best bolts to use? are galvanized ok? also, I had a question on my tire rims, I wanted to repaint them either white or black, my whole trailer will be black. what would a good paint be to use on the rims? here is one of them.

nomowork
Posts: 1137
Joined: 20 May 2011, 00:42
8
Location: The wacky west coast

Trailer rebuild question

Post by nomowork »

IMO, powder coating would be the best for a wheel. Rattle can paint will wear off quickly.
HAPPILY UNEMPLOYED

User avatar
Jdholmes
Posts: 972
Joined: 23 Sep 2011, 23:15
8
Location: Las Vegas

Trailer rebuild question

Post by Jdholmes »

Powder coating is nice and ideal but very expensive compared to painting it...nice for folks with deep pockets IMO.

Galvanized is fine for trailer hardware, again if you have deep pockets you could jump to stainless. Just don't do a regular plated steel - galvanized is meant for outdoor applications and as long as it isn't being used alongside aluminum it will be a good choice.

User avatar
BtsNhoS
Posts: 69
Joined: 02 Aug 2011, 18:40
8

Trailer rebuild question

Post by BtsNhoS »

ok cool im glad the galvanized bolts will work well since they i bought almost $50 worth haha. yeah powder coating would be alot of $$$, I am wondering how a coat of rhino liner would work? only problem is if it looks like crap it is almost impossible to remove

nomowork
Posts: 1137
Joined: 20 May 2011, 00:42
8
Location: The wacky west coast

Trailer rebuild question

Post by nomowork »

I used Rustoleum hammered finished applied with a brush on some of my trailer wheels. Even with a brush, it goes on evenly thanks to the hammered finish. It isn't the best but it gets the job done.

I agree about the cost of powder coating.

There's also the option of looking for sales of trailer wheel/tire combos at places like Harbor Freight especially when they have coupons. I bought four combos using the coupons. The cost of trailer tires alone at a tire store was just about the same price. The tire store owner even told me that most trailer tires are made in China anyway.
HAPPILY UNEMPLOYED

User avatar
BtsNhoS
Posts: 69
Joined: 02 Aug 2011, 18:40
8

Trailer rebuild question

Post by BtsNhoS »

ill look there tomorrow, i know that my tire at northern tools is almost 100 with the rim. unfortunately its a larger tire since i have a big trailer, ive been checking on craigslist alot esp. because i need a spare.

User avatar
muskiemike12
Posts: 553
Joined: 16 Feb 2011, 10:17
9
Location: Aitkin, Minnesota

Trailer rebuild question

Post by muskiemike12 »

I would never put stainless hardware on a trailer. It is just too soft. Standard zinc plated bolts are stronger than stainless.

User avatar
BaitCaster
Posts: 1608
Joined: 30 Mar 2010, 12:51
10
Location: Southern Ontario

Trailer rebuild question

Post by BaitCaster »

When I rebuilt my trailer I used the standard zinc plated bolts. I don't think you need to spend the extra money on stainless. I spray-painted my wheels and they have held up just fine.
“There’s a fine line between fishing and just standing on the shore like an idiot.” ~Stephen Wright

The Livin Large Project - https://www.tinboats.net/forum/viewtopic ... 21&t=14160

User avatar
muskiemike12
Posts: 553
Joined: 16 Feb 2011, 10:17
9
Location: Aitkin, Minnesota

Trailer rebuild question

Post by muskiemike12 »

The use of stainless hardware on a trailer really has nothing to do with cost but the actual tensil strength of the hardware itself. Stainless hardware is soft and breaks easily, not something you want on a trailer.

I would spray paint the wheels also. Clean them up and sand them a little bit then wipe down with alcohol and spray away.

lckstckn2smknbrls
Posts: 4349
Joined: 05 Oct 2008, 12:14
11
Location: Algonquin Il

Trailer rebuild question

Post by lckstckn2smknbrls »

A few years ago I redid my trailer, I used SS bolts, washers and nuts. I haven't had any problems with them.
1971 14' Ward's Sea King Jon Boat / 1983 Mariner 25HP

User avatar
BtsNhoS
Posts: 69
Joined: 02 Aug 2011, 18:40
8

Trailer rebuild question

Post by BtsNhoS »

cool thanks guys, yeah im just using galvanized, should hold up pretty well plus i only fish fresh water. as far as the wheels I am probably going to use some rustoleam (correct spelling?) spray paint on them after a good sanding/washing

User avatar
lbursell
Posts: 392
Joined: 18 Aug 2010, 06:33
9
Location: Bonham, Texas

Trailer rebuild question

Post by lbursell »

Here's a few pics from my trailer rebuild. I'm pretty pleased with how it came out. Be warned, though, lots of elbow grease was involved.

Before:


After much sanding:


Rustoleum Primer:

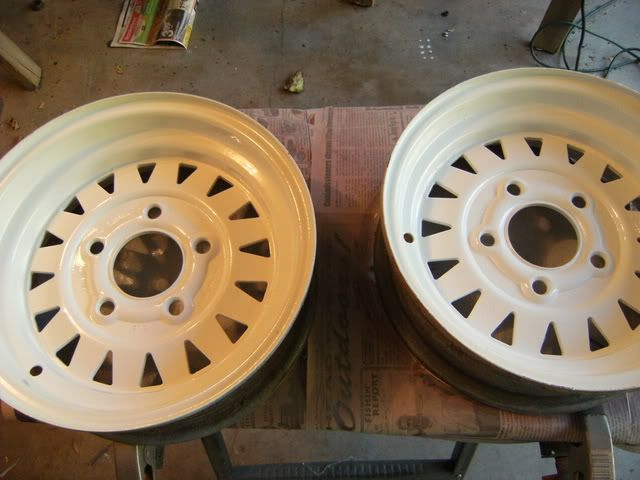

I'm pretty sure it was Tractor Supply Farm Implement Paint:

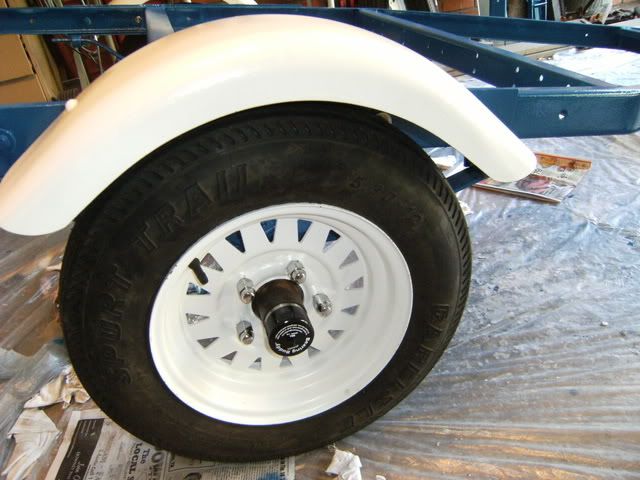

Mounted:



The link to my full trailer rebuild is in my signature. I gotta get back to work on this thing.
Resurrecting A 1652 MonArk
https://www.tinboats.net/forum/viewtopic ... 21&t=16589

I've grown used to doing stupid things, I just try not to have witnesses.

User avatar
Jdholmes
Posts: 972
Joined: 23 Sep 2011, 23:15
8
Location: Las Vegas

Trailer rebuild question

Post by Jdholmes »

Looks real pretty! I like it. Good job.

User avatar
BtsNhoS
Posts: 69
Joined: 02 Aug 2011, 18:40
8

Trailer rebuild question

Post by BtsNhoS »

wow those wheels look awesome, i think im going to go with white instead of black. has anyone painted their pvc guide-ons before?

User avatar
lbursell
Posts: 392
Joined: 18 Aug 2010, 06:33
9
Location: Bonham, Texas

Trailer rebuild question

Post by lbursell »

I did. Used Krylon "Fusion" in a rattle can. The label says its designed to bond with plastics. So far, so good.
